What is the solar site survey form template?
A solar quote is only as good as the survey behind it. Get the orientation, pitch or shading wrong and the yield estimate is wrong; miss a full electrical panel and the price changes after the customer has signed. A structured survey means every surveyor collects the same information, every time.
This template covers the customer and property, the mounting location and roof, shading, the electrical service and panel, and the customer's energy use and goals. Roof questions only appear for a roof mount; ground and carport mounts ask about the available area instead. If shading isn't "None", the surveyor must say what causes it, and a note appears when a landlord, HOA or freeholder may need to approve the installation.
Roof and panel photos are required, and bills and shade analysis can be attached. Each survey is filed as a PDF in your FileIt vault, ready for the design team.
- Best for
- Solar installers, energy consultants and home-improvement companies
- Filled in by
- The surveyor on site or on a video call
- Time to complete
- About 15–20 minutes
- Includes
- Roof and panel photos, shade analysis upload, bill upload, customer goals
Who uses a solar site survey form?
- A surveyor visits a house to prepare a rooftop solar quote
- An installer assesses a farm outbuilding or a field for a ground-mounted array
- A company adds battery storage to an existing solar customer's quote
- A surveyor checks whether a main panel needs upgrading before installation
- A sales team collects roof photos and bills from customers remotely
- A commercial installer surveys a flat-roofed building
Questions on this solar site survey form
45 questions over 4 pages · includes file upload, conditional questions, multiple pages.
1 Customer & property
- Surveyor*
- Survey date*
- Customer name*
- Customer email*
- Customer phone
- Property address*
- Property type* Detached house · Semi-detached / townhouse · Bungalow · Apartment building · Commercial building · Farm / outbuilding · Other
- The customer* Owns the property · Rents the property · Owns — HOA or freeholder approval needed
- Proposed mounting* Roof mount · Ground mount · Carport / canopy
2 Roof & shading
- Roof covering* asked only when it applies Asphalt shingle · Clay or concrete tile · Slate · Metal — standing seam · Metal — corrugated · Flat membrane · Other
- Roof age (years) asked only when it applies
- Roof condition* asked only when it applies Good · Fair · Needs repair before installation
- Rafter / truss size & spacing asked only when it applies
- Ground area available* asked only when it applies
- Main array faces* South · South-east · South-west · East · West · East / west split · North · North-east · North-west · Flat (tilt frames)
- Azimuth (degrees)
- Pitch / tilt (degrees)
- Usable area (sq ft or m²)
- Number of roof planes used asked only when it applies
- Shading on the array area* None · Light — a few hours a day · Moderate · Heavy
- What causes the shade?* asked only when it applies Trees · Neighbouring buildings · Chimney · Vents or dormers · Utility poles or lines · Hills
- Shade analysis or sun-path readings
- Photos of the roof / site*
3 Electrical
- Electrical service* Single-phase · Split-phase (120/240 V) · Three-phase
- Main panel make
- Panel busbar rating (amps)
- Main breaker (amps)
- Spare breaker spaces
- Panel upgrade needed?* No · Possibly · Yes
- Meter location
- Proposed inverter / battery location
- Estimated cable run (ft or m)
- Wi-Fi reaches the inverter location?
- Photos of the panel, meter and labels*
4 Energy use & goals
- Annual electricity use (kWh)
- Average monthly bill
- Electricity supplier / utility
- Tariff or rate plan
- Recent electricity bills
- Planned changes to electricity use Electric vehicle · Heat pump · Pool or hot tub · Home extension · Electric cooking · None planned
- What matters most to the customer?* Lower bills · Backup power in outages · Selling excess to the grid · Lower carbon footprint · Property value
- Interested in battery storage?* Yes · Maybe — include as an option · No
- Budget range Not discussed · Under 10,000 · 10,000–20,000 · 20,000–35,000 · Over 35,000
- When would they like it installed? As soon as possible · Within 3 months · 3–6 months · Just researching
- Notes for the designer
The solar site survey form, page by page
1 Customer & property
The surveyor and date, the customer's name, email and phone, and the property address come first. The property type and whether the customer owns or rents are required; if they rent or need HOA or freeholder approval, a note reminds the surveyor to check who must approve. The proposed mounting is roof, ground, or carport.
2 Roof & shading
For a roof mount, the covering, age, condition and rafter or truss size and spacing are recorded; ground and carport mounts describe the available area instead. The direction the main array faces is required, with azimuth, pitch and usable area, plus the number of roof planes for a roof mount.
Shading is none, light, moderate or heavy; anything but none requires the causes — trees, buildings, chimneys, vents, poles or hills. A shade analysis can be uploaded, and photos of the roof or site are required.
3 Electrical
The electrical service type and whether a panel upgrade is needed are required. The panel make, busbar rating, main breaker, spare breaker spaces, meter location, proposed inverter or battery location, estimated cable run and Wi-Fi coverage follow, and photos of the panel, meter and labels are required.
4 Energy use & goals
Annual electricity use, the average monthly bill, the utility and tariff are recorded, and recent bills can be attached. The customer's planned changes — EV, heat pump, pool, extension, electric cooking — and what matters most to them are captured, with battery interest required. Budget, installation timeline and notes for the designer finish the survey.
Make the template yours
- Change the budget ranges and currency to match your market
- Add fields for your preferred panel and inverter options
- Remove the budget question if you'd rather talk about price only when you present the quote
- Send surveys to your design team's inbox automatically
- File surveys by customer so the quote and contract sit alongside
- Share the form with customers for a self-survey before the site visit
Tips for a better solar site survey form
- Photograph every roof plane you'd use and every obstruction on it
- Photograph the panel with the door open and the labels readable
- Ask for twelve months of bills, not one, to capture seasonal use
- Talk through future loads — an EV or heat pump changes the system size
- Record the roof's condition honestly; a re-roof first may be the better advice
- Check approvals early for rented or HOA properties

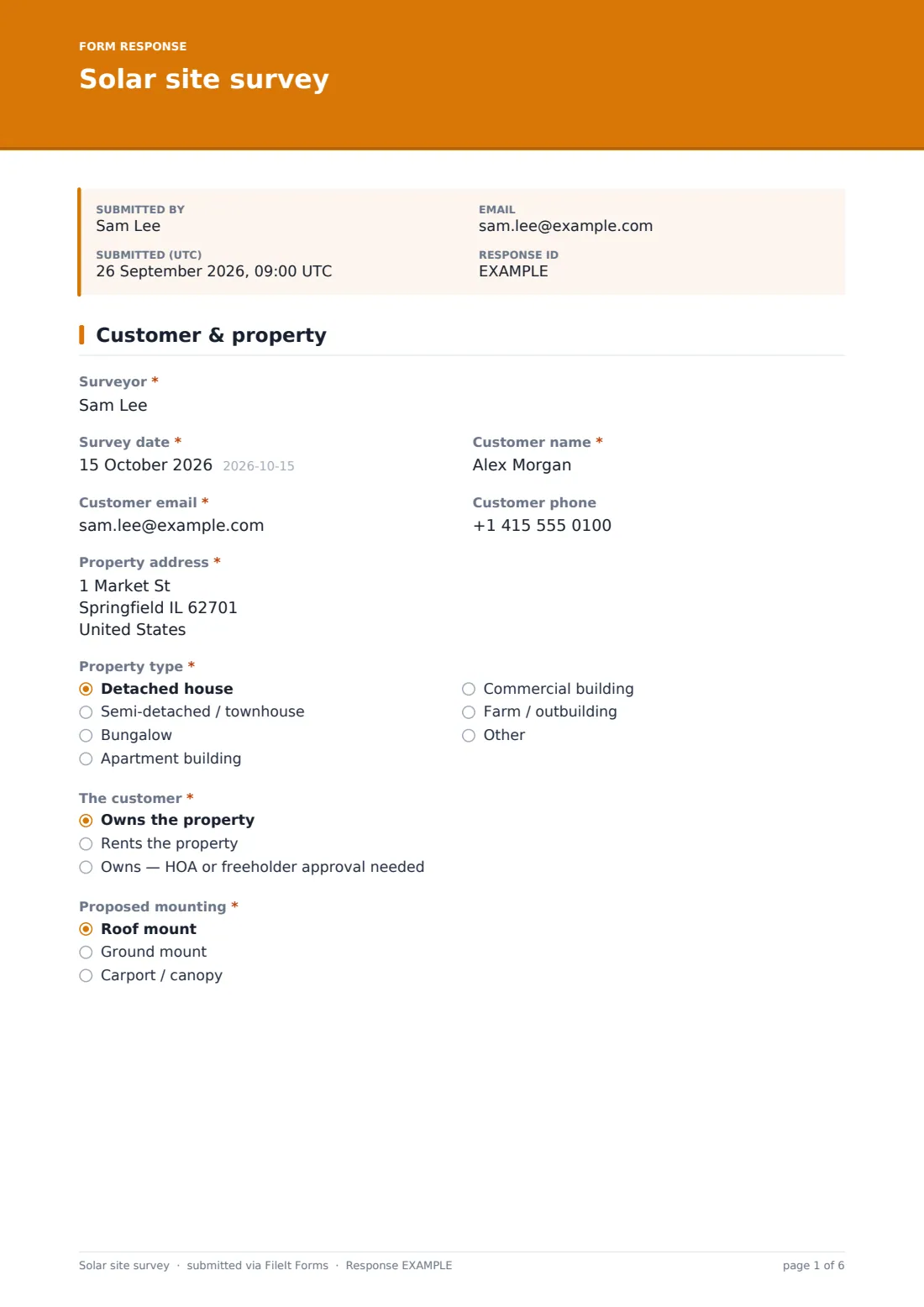

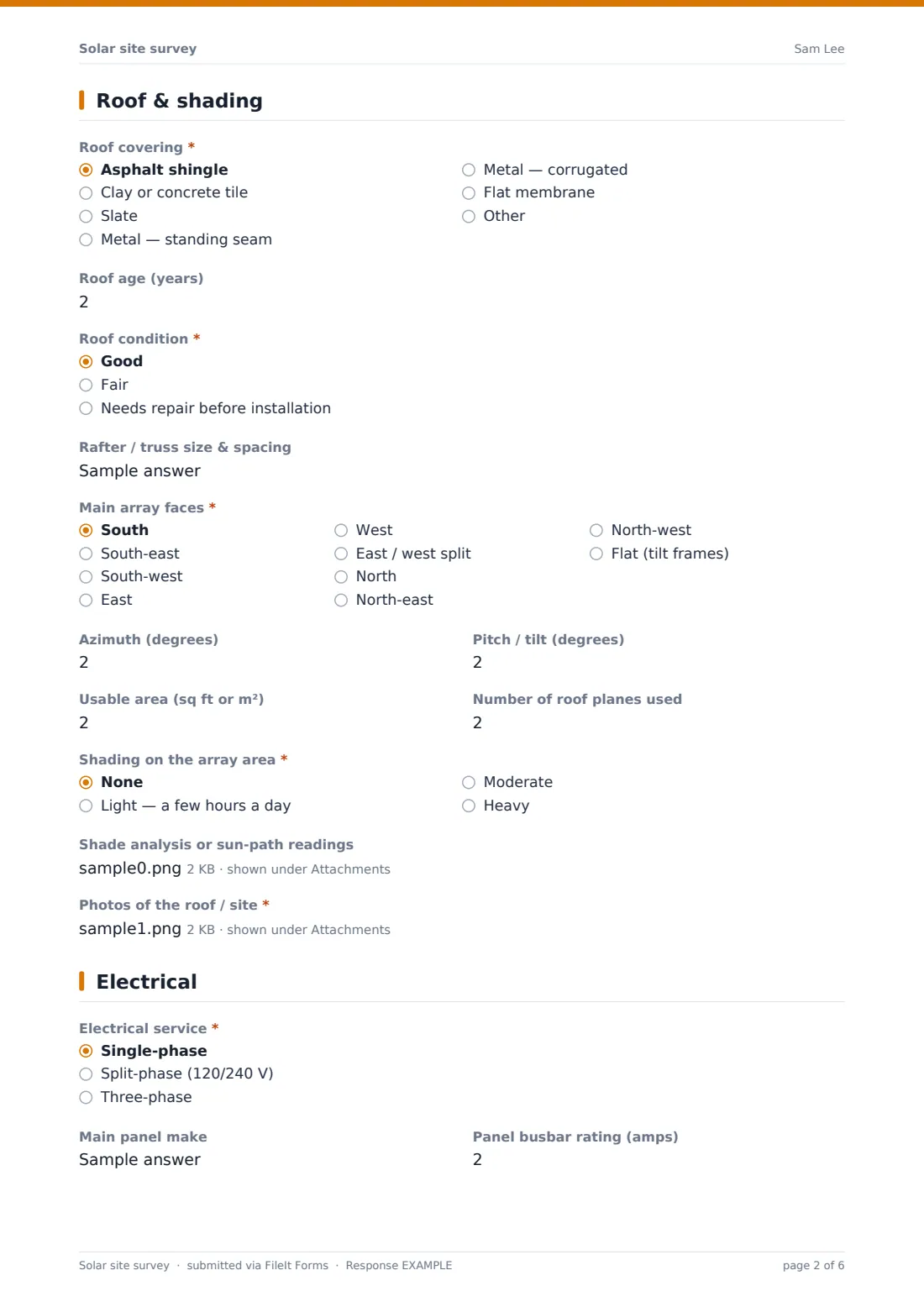

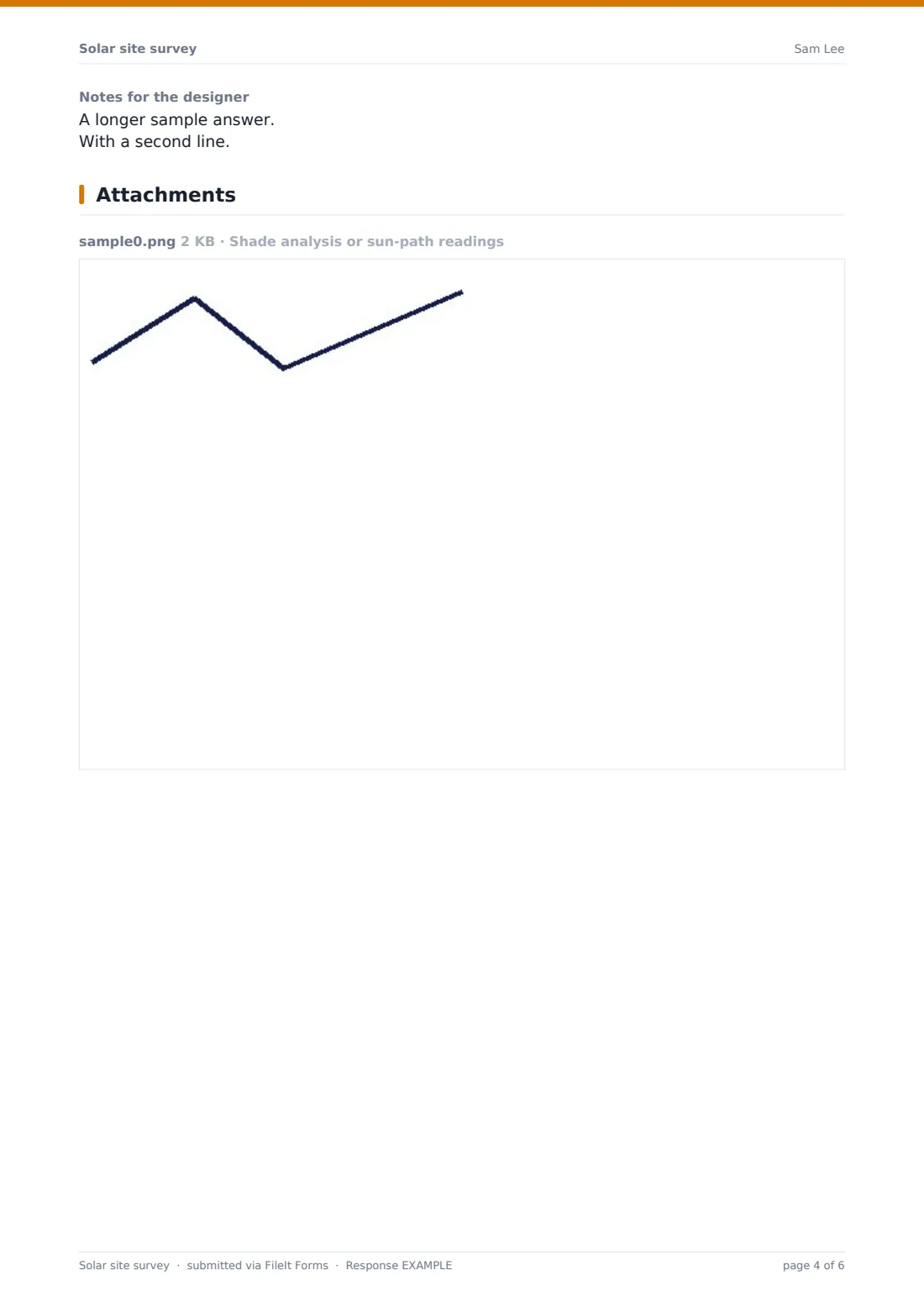

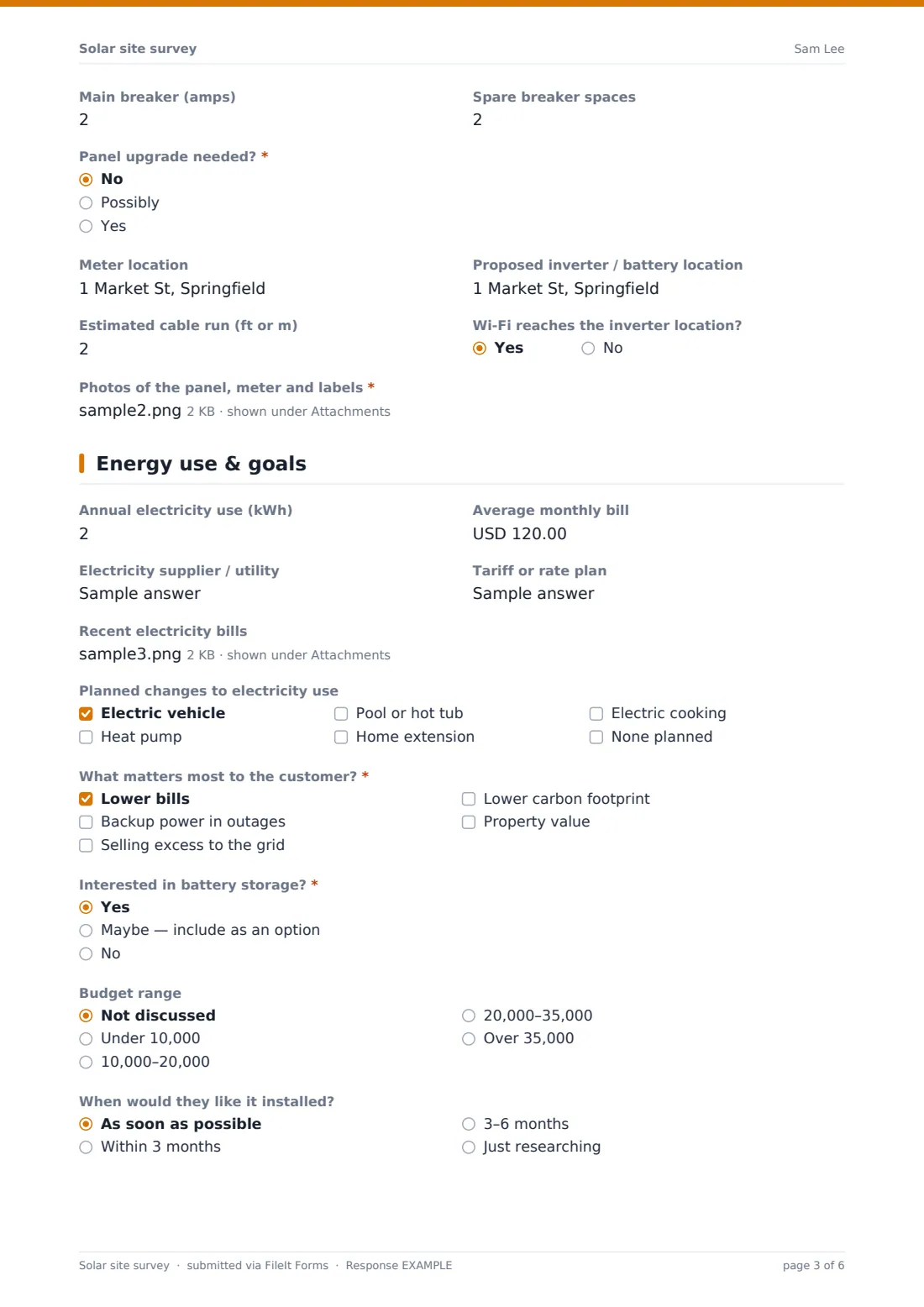

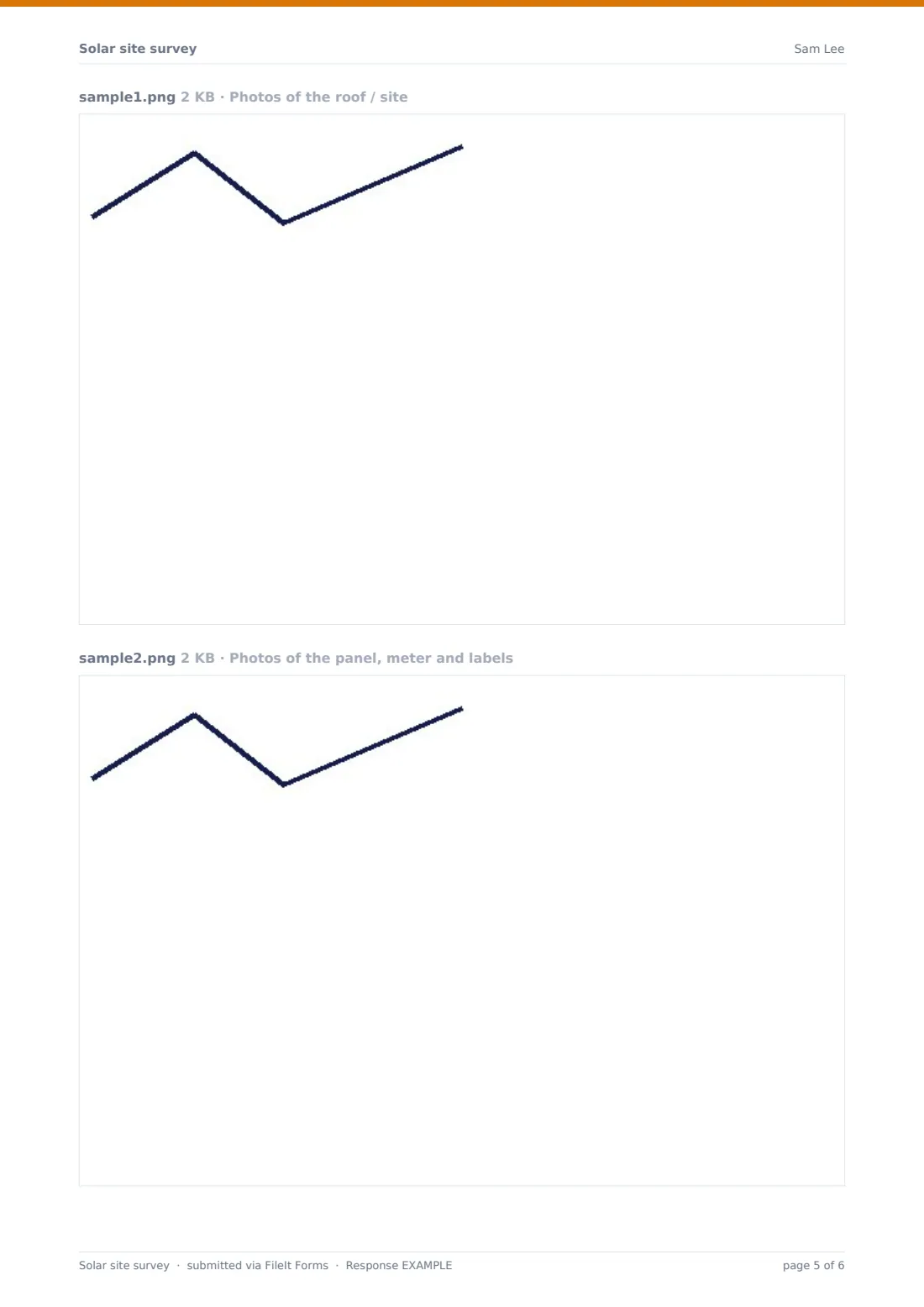

Every response becomes a PDF in your vault
The survey is filed as a PDF in your FileIt vault with all photos, bills and shade files attached, and the design team can be notified by email.
Installers typically work through new surveys in the Responses table, prepare designs and quotes, and file the quote in the same customer folder as the survey.
- Start from this template. It opens in the FileIt Forms designer — change any question, add pages, set the rules for when questions appear.
- Share it. Turn on a public link, or send it to people by email, each with their own link. They don’t need a FileIt account.
- Get the answers as PDFs. Each response is saved as a PDF in the vault folder you choose, with uploaded files attached — and listed in a Responses table you can export to CSV.
Solar site survey form: frequently asked questions
Is this solar site survey form template free?
Yes. It's included with the Forms app on every FileIt account, including the free plan, and you can edit any question to fit the way you work.
Does it work for ground-mounted systems?
Yes. Choose ground mount and the roof questions are replaced by a description of the available ground area.
Can customers fill it in themselves?
Yes. Share the link — many installers send it ahead of a site visit to collect bills and roof photos, then complete the technical sections on site.
Can I attach a shade analysis?
Yes. Upload up to three PDFs or images from your shade analysis tool or sun-path readings.
Does it cover battery storage?
Yes. Battery interest is a required question, and the proposed inverter or battery location is recorded on the electrical page.
Is the budget list in a particular currency?
The ranges have no currency symbol, so you can edit them to suit your market.
